UN POCO DE HISTORIA:

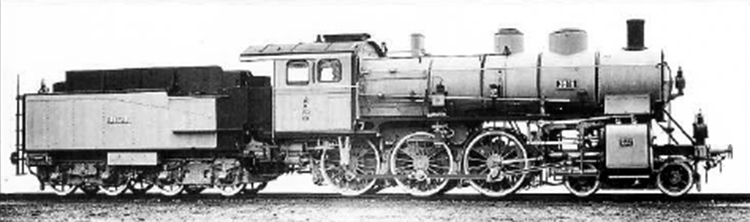

Basadas en la clase P 3/5 N, estas locomotoras introdujeron el vapor sobrecalentado, en lugar del saturado y fueron recibidas ya por la Administración Grupal de Baviera. Su resultado fue muy bueno, tanto que a partir de 1924 se transformaron todas las P 3/5 N que aún quedaban a P 3/5 H. Llevaban ténder tipo 2'2' T 21,8. Todas llegaron a la DRG, que las asignó a la serie 38 4xx.
| Constructor | Nº. | F. Servicio | Nº Invent. | Nombre | Nº DRG | Baja | Fab. H0 | Referencia | Época | Librea | Lanzamiento |
| Suministro de acuerdo con el contrato de fecha 14/21-01-1921 | |||||||||||
| Maffei | 5.246 | 05-1921 | 3.837 | - | 38 401 | 14-11-1951 | Brawa | 40658/61 | IIb- | Negra | 2012 |
| Maffei | 5.247 | 05-1921 | 3.838 | - | 38 402 | 13-12-1950 | |||||
| Maffei | 5.248 | 05-1921 | 3.839 | - | 38 403 | 14-11-1951 | Trix | 32209 | IIb- | Negra | 1987 |
| Maffei | 5.249 | 05-1921 | 3.840 | - | 38 404 | 14-11-1951 | |||||
| Maffei | 5.250 | 05-1921 | 3.841 | - | 38 405 | 14-11-1951 | |||||
| Maffei | 5.251 | 05-1921 | 3.842 | - | 38 406 | 14-11-1951 | Brawa | 40650/3 | IIa | Verde | 2012 |
| Maffei | 5.252 | 05-1921 | 3.843 | - | 38 407 | 14-11-1951 | |||||
| Maffei | 5.253 | 05-1921 | 3.844 | - | 38 408 | 13-12-1950 | |||||
| Maffei | 5.254 | 05-1921 | 3.845 | - | 38 409 | 14-11-1951 | |||||
| Maffei | 5.255 | 05-1921 | 3.846 | - | 38 410 | 14-11-1951 | |||||
| Maffei | 5.256 | 06-1921 | 3.847 | - | 38 411 | 27-07-1954 | |||||
| Maffei | 5.257 | 06-1921 | 3.848 | - | 38 412 | 14-11-1951 | |||||
| Maffei | 5.258 | 06-1921 | 3.849 | - | 38 413 | 14-11-1951 | |||||
| Maffei | 5.259 | 06-1921 | 3.850 | - | 38 414 | 14-11-1951 | |||||
| Maffei | 5.260 | 06-1921 | 3.851 | - | 38 415 | 13-12-1950 | |||||
| Maffei | 5.261 | 06-1921 | 3.852 | - | 38 416 | 31-05-1946 | |||||
| Maffei | 5.262 | 06-1921 | 3.853 | - | 38 417 | 14-11-1951 | |||||
| Maffei | 5.263 | 06-1921 | 3.854 | - | 38 418 | 12-07-1948 | |||||
| Maffei | 5.264 | 06-1921 | 3.855 | - | 38 419 | 13-12-1950 | |||||
| Maffei | 5.265 | 06-1921 | 3.856 | - | 38 420 | 13-12-1950 | |||||
| Maffei | 5.266 | 07-1921 | 3.857 | - | 38 421 | 12-11-1947 | |||||
| Maffei | 5.267 | 07-1921 | 3.858 | - | 38 422 | 14-11-1951 | |||||
| Maffei | 5.268 | 07-1921 | 3.859 | - | 38 423 | 13-12-1950 | |||||
| Maffei | 5.269 | 07-1921 | 3.860 | - | 38 424 | 13-12-1950 | |||||
| Maffei | 5.270 | 07-1921 | 3.861 | - | 38 425 | 11-01-1952 | |||||
| Maffei | 5.271 | 07-1921 | 3.862 | - | 38 426 | 12-1950 | |||||
| Maffei | 5.272 | 07-1921 | 3.863 | - | 38 427 | 28-05-1954 | |||||
| Maffei | 5.273 | 07-1921 | 3.864 | - | 38 428 | 13-12-1950 | |||||
| Maffei | 5.274 | 07-1921 | 3.865 | - | 38 429 | 14-11-1951 | |||||
| Maffei | 5.275 | 10-08-1921 | 3.866 | - | 38 430 | 13-12-1950 | |||||
| Maffei | 5.276 | 08-1921 | 3.867 | - | 38 431 | 12-02-1948 | |||||
| Maffei | 5.277 | 08-1921 | 3.868 | - | 38 432 | 12-05-1955 | Trix | 22495 | III | Negra | 1993 |
| Brawa | 40654/7 | III | Negra | 2012 | |||||||
| Maffei | 5.278 | 19-08-1921 | 3.869 | - | 38 433 | 14-11-1951 | |||||
| Maffei | 5.279 | 08-1921 | 3.870 | - | 38 434 | 14-11-1951 | |||||
| Maffei | 5.280 | 08-1921 | 3.871 | - | 38 435 | 14-11-1951 | |||||
| Maffei | 5.281 | 08-1921 | 3.872 | - | 38 436 | 14-06-1946 | |||||
| Maffei | 5.282 | 08-1921 | 3.873 | - | 38 437 | 14-11-1951 | |||||
| Maffei | 5.283 | 08-1921 | 3.874 | - | 38 438 | 13-08-1952 | |||||
| Maffei | 5.284 | 08-1921 | 3.875 | - | 38 439 | 18-10-1954 | |||||
| Maffei | 5.285 | 08-1921 | 3.876 | - | 38 440 | 11-01-1952 | |||||
| Suministro de acuerdo con el contrato de fecha 10/14-03-1921 | |||||||||||
| Maffei | 5.296 | 09-1921 | 3.877 | - | 38 441 | 14-11-1951 | |||||
| Maffei | 5.297 | 09-1921 | 3.878 | - | 38 442 | 11-01-1952 | |||||
| Maffei | 5.298 | 09-1921 | 3.879 | - | 38 443 | 13-12-1950 | |||||
| Maffei | 5.299 | 09-1921 | 3.880 | - | 38 444 | 14-11-1951 | |||||
| Maffei | 5.300 | 09-1921 | 3.881 | - | 38 445 | 14-11-1951 | |||||
| Maffei | 5.301 | 09-1921 | 3.882 | - | 38 446 | 11-01-1952 | |||||
| Maffei | 5.302 | 09-1921 | 3.883 | - | 38 447 | 11-01-1952 | |||||
| Maffei | 5.303 | 09-1921 | 3.884 | - | 38 448 | 11-01-1952 | |||||
| Maffei | 5.304 | 09-1921 | 3.885 | - | 38 449 | 14-11-1951 | |||||
| Maffei | 5.305 | 09-1921 | 3.886 | - | 38 450 | 13-12-1950 | |||||
| Maffei | 5.306 | 10-1921 | 3.887 | - | 38 451 | 11-01-1952 | |||||
| Maffei | 5.307 | 10-1921 | 3.888 | - | 38 452 | 16-04-1947 | |||||
| Maffei | 5.308 | 10-1921 | 3.889 | - | 38 453 | 13-12-1950 | |||||
| Maffei | 5.309 | 10-1921 | 3.890 | - | 38 454 | 11-01-1952 | |||||
| Maffei | 5.310 | 10-1921 | 3.891 | - | 38 455 | 13-12-1950 | |||||
| Maffei | 5.311 | 19-09-1921 | 3.892 | - | 38 456 | 14-11-1951 | |||||
| Maffei | 5.312 | 09-1921 | 3.893 | - | 38 457 | 14-11-1951 | |||||
| Maffei | 5.313 | 09-1921 | 3.894 | - | 38 458 | 35-05-1946 | Trix | 32208 | IIa | Verde | 1987 |
| Maffei | 5.314 | 09-1921 | 3.895 | - | 38 459 | 01-12-1945 | |||||
| Maffei | 5.315 | 09-1921 | 3.896 | - | 38 460 | 01-06-1953 | |||||
| Maffei | 5.316 | 29-10-1921 | 3.897 | - | 38 461 | 14-11-1951 | |||||
| Maffei | 5.317 | 11-921 | 3.898 | - | 38 462 | 14-11-1951 | |||||
| Maffei | 5.318 | 11-921 | 3.899 | - | 38 463 | 18-03-1955 | |||||
| Maffei | 5.319 | 11-921 | 3.900 | - | 38 464 | 11-01-1952 | |||||
| Maffei | 5.320 | 07-11-921 | 3.901 | - | 38 465 | 12-12-1946 | |||||
| Maffei | 5.321 | 11-921 | 3.902 | - | 38 466 | 14-11-1951 | |||||
| Maffei | 5.322 | 11-921 | 3.903 | - | 38 467 | 13-12-1950 | |||||
| Maffei | 5.323 | 14-11-921 | 3.904 | - | 38 468 | 09-11-1953 | |||||
| Maffei | 5.324 | 11-921 | 3.905 | - | 38 469 | 13-12-1950 | |||||
| Maffei | 5.325 | 11-921 | 3.906 | - | 38 470 | 13-08-1952 | |||||
| Maffei | 5.326 | 12-1921 | 3.907 | - | 38 471 | 14-11-1951 | |||||
| Maffei | 5.327 | 12-1921 | 3.908 | - | 38 472 | 23-05-1954 | |||||
| Maffei | 5.328 | 12-1921 | 3.909 | - | 38 473 | 14-11-1951 | |||||
| Maffei | 5.329 | 12-1921 | 3.910 | - | 38 474 | 13-12-1950 | |||||
| Maffei | 5.330 | 12-1921 | 3.911 | - | 38 475 | 13-12-1950 | |||||
| Maffei | 5.331 | 12-1921 | 3.912 | - | 38 476 | 13-11-1951 | |||||
| Maffei | 5.332 | 12-1921 | 3.913 | - | 38 477 | 13-12-1950 | |||||
| Maffei | 5.333 | 12-1921 | 3.914 | - | 38 478 | 14-11-1951 | |||||
| Maffei | 5.334 | 12-1921 | 3.915 | - | 38 479 | 11-01-1952 | Brawa | 40662/65 | IIa |
Verde | 09/2014 |
Dampflok-Report. Band Nº 2. Baureihen 22-39.
Munich, Eisenbahn Journal. Febrero-1995. 79 pp. il. b/n y col. 30 x 21 cm. ISBN 3-922404-72-3
Sobre las P 3/5 H: p. 48.
Bayern Report, nº 9. Die Gattungen S 3/5 N, S 3/5 H, S 2/5, S 2/6, (S 3/6), P 3/5 N, P 3/5 H, G 5/5, G 3/4.
Munich, Eisenbahn Journal. Noviembre-2001. 98 pp. il. b/n y col. 30 x 21 cm. ISBN 3-89610-081-5
Sobre las P 3/5 H: pp. 52-61.
Typenblätter. Band nº 1. Baureihen 01-59.
Munich, Eisenbahn Journal. 2002. 230 pp. il. b/n. 30 x 21 cm. ISBN 3-89610-093-9
Sobre las P 3/5 H: pp. 129-130.
Lokomotiven der Bayersichen Eisenbahnen. Band 1: Geschichte der Bayerischen Eisenbahnen. Beschreibungen der Scnellzug-, Personenzug- und Güterzuglokomotiven.
München, Verlag Jürgen Pepke. 2009. 379 pp. il. n. 31 x 22 cm. ISBN 978-3-940798-13-8
Sobre las P 3/5 H: pp. 271-275.
